Drvič fabo 200-350 tph 200–350 t/h brech-, sieb- und waschanlage elektrické nové

Predajná cena :

Cena na vyžiadanie

Späť na vyhľadávanie

Drvenie, recyklácia Fabo 200–350 t/h Brech-,...

Drvič Fabo 200-350 TPH 200–350 t/h Brech-, Sieb- und Waschanlage Elektrické nové

2026
0 Hodiny
52511 Geilenkirchen

Hlavné informácie
Ref. webu:	11277466
Typ	Drvič
Značka	Fabo
Rad (značka : Fabo )	200-350 TPH
Model	200–350 t/h Brech-, Sieb- und Waschanlage
Stav	Nové
Rok	2026
Krajina	NEMECKO
Výrobca	Fabo

Stav stroja
Energia	Elektrické

Prevodovka
Upresnenie prevodovky	-

Doplňujúce informácie Fabo 200–350 t/h Brech-,...
Dodacia lehota (v dňoch)	90

Hlavná charakteristika
Kapacita	350 tony

Poznámky

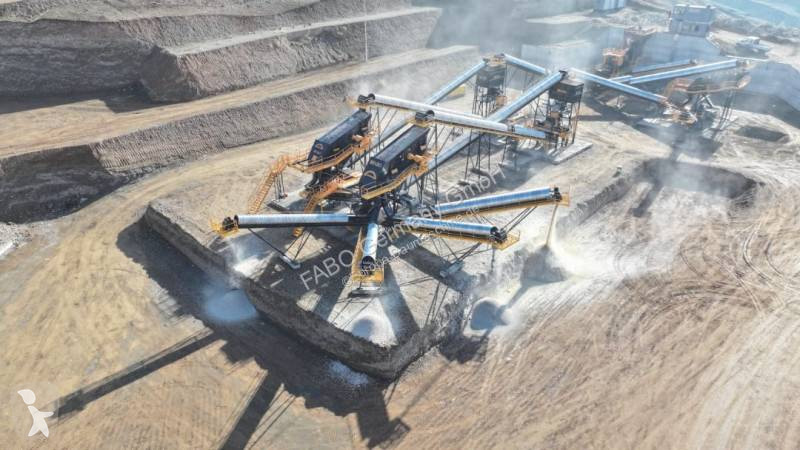

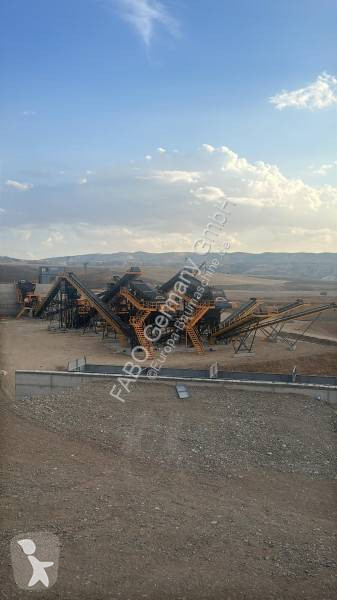

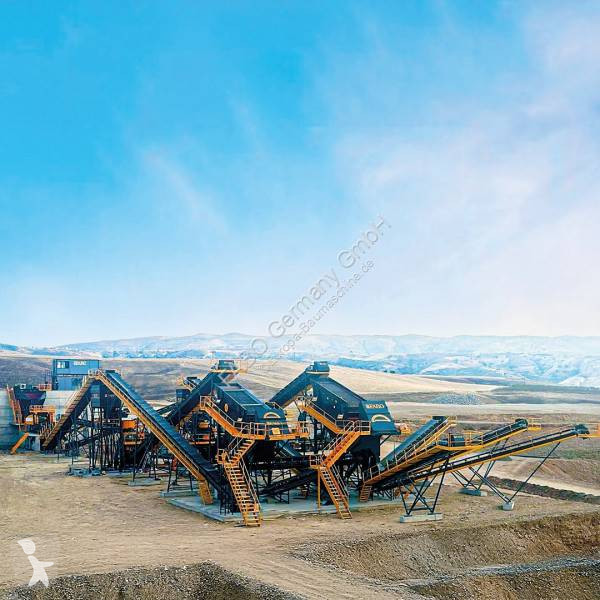

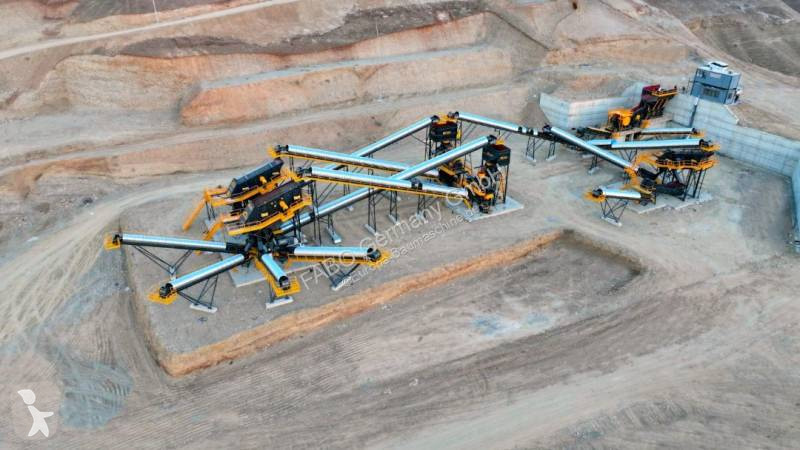

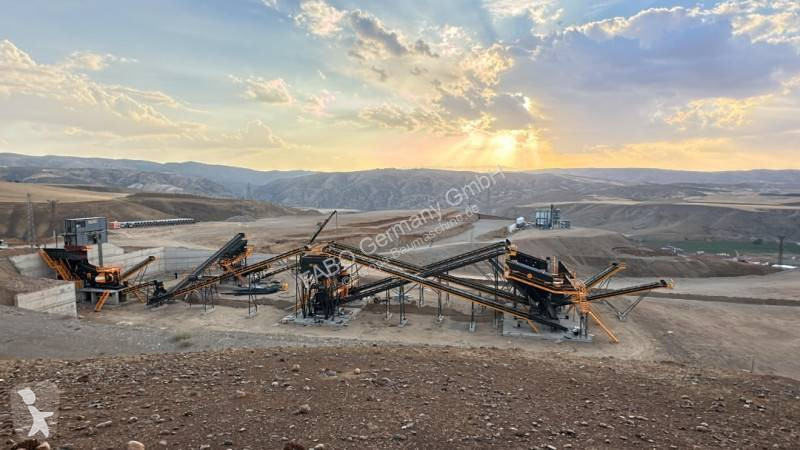

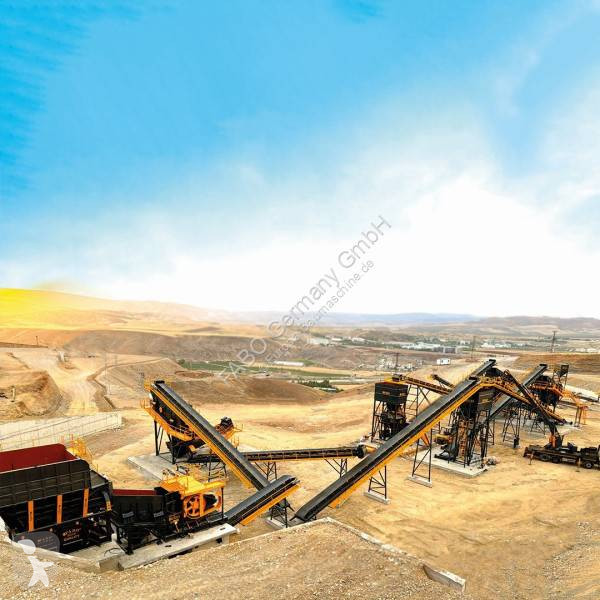

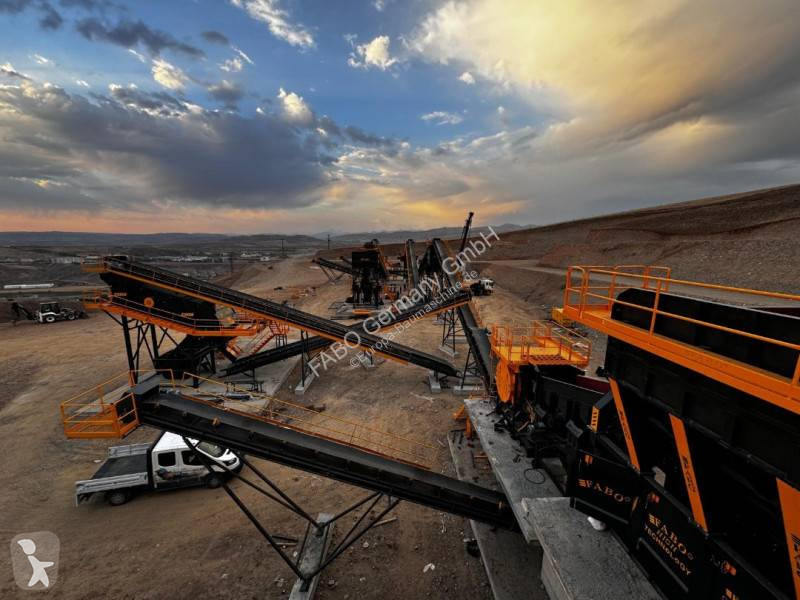

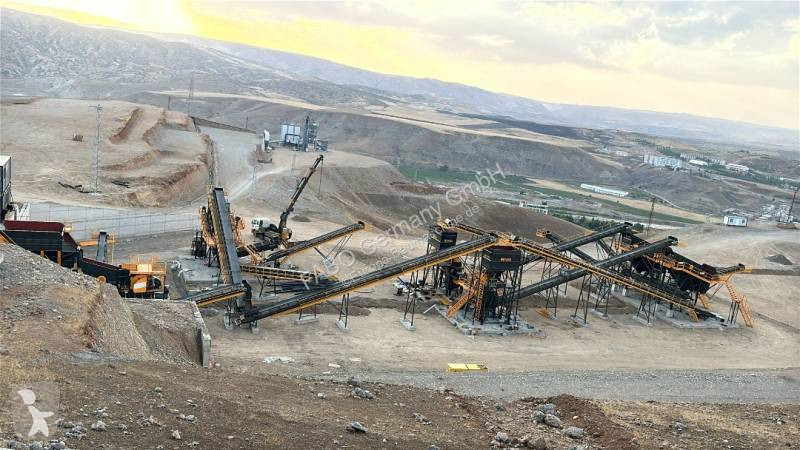

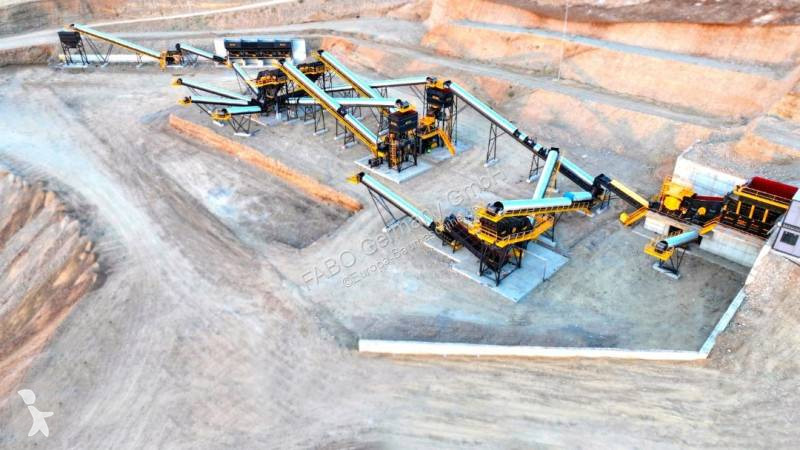

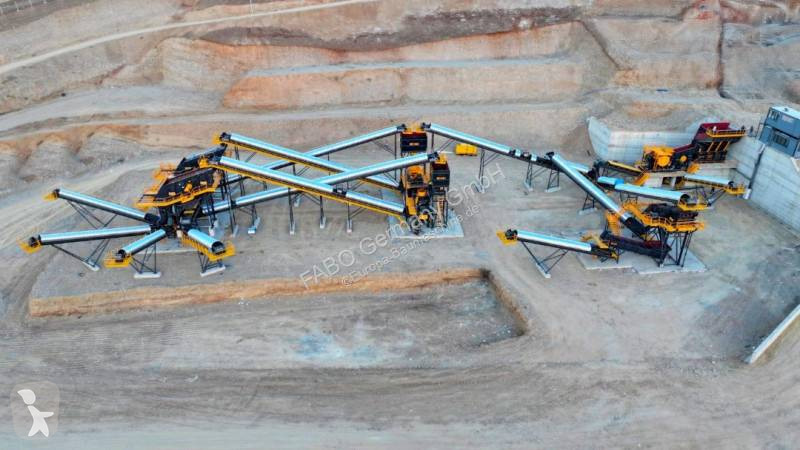

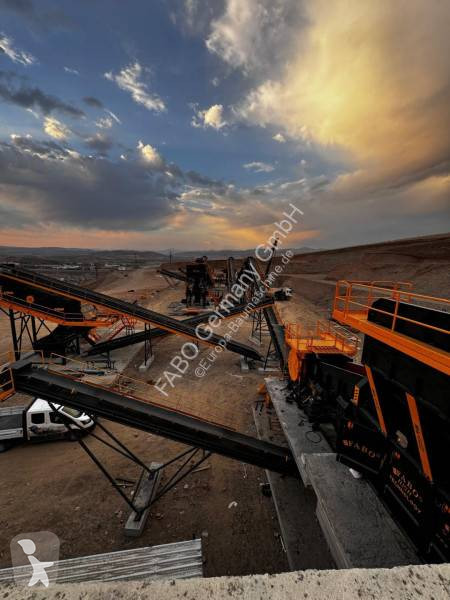

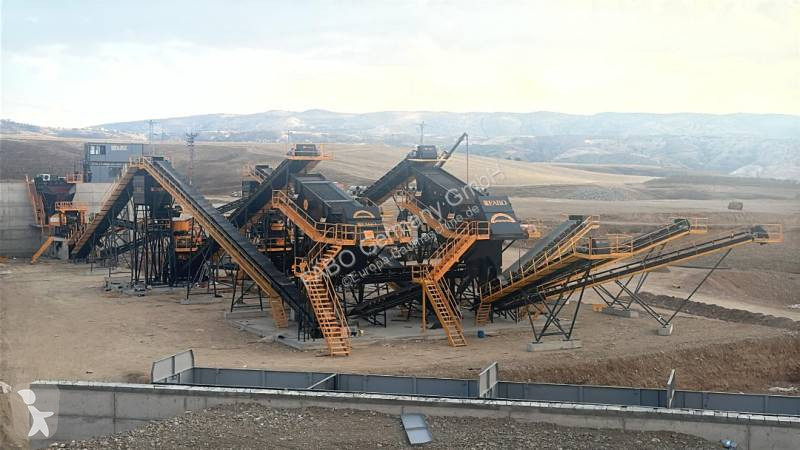

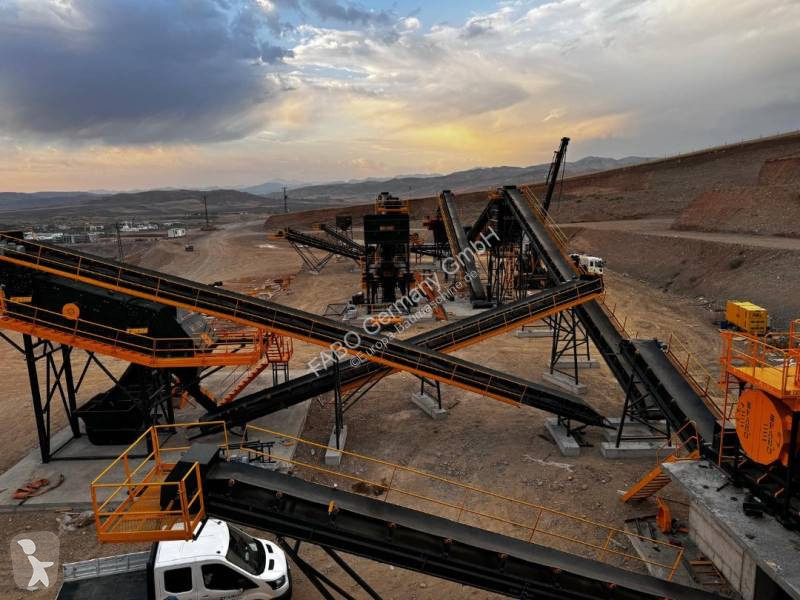

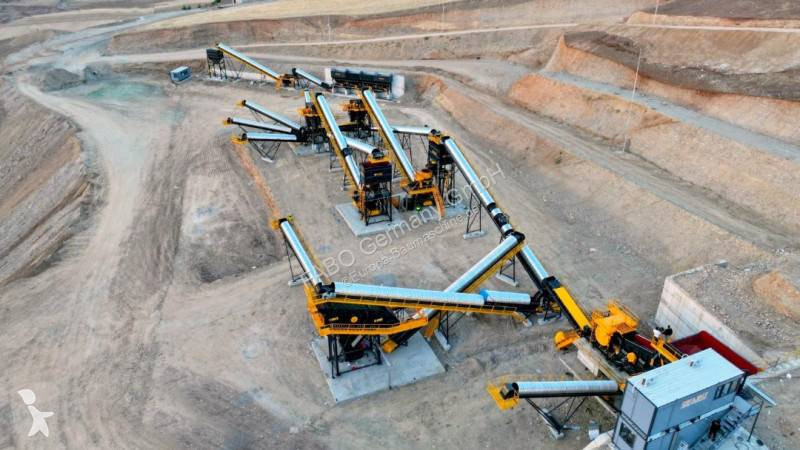

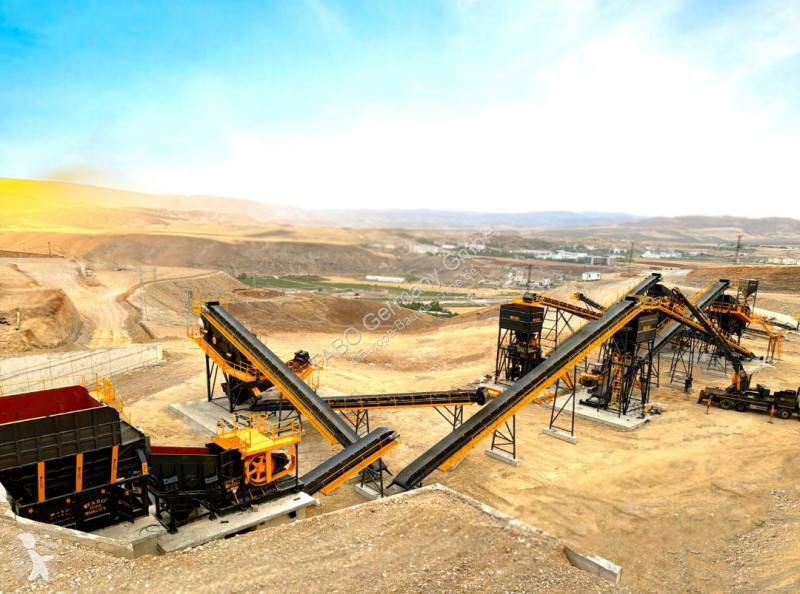

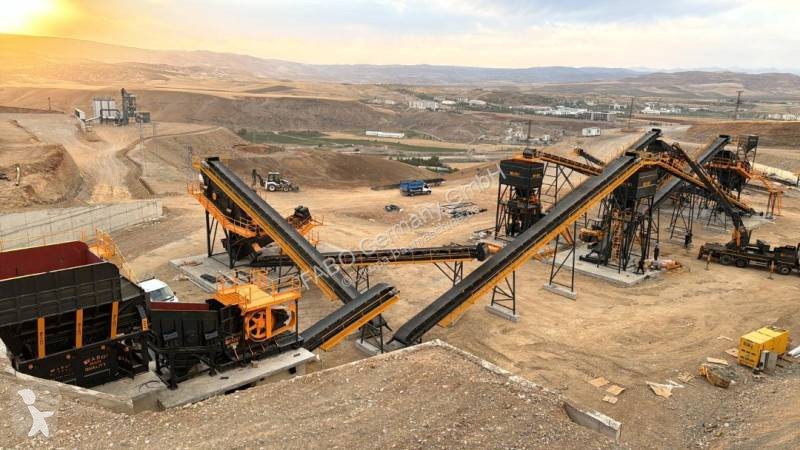

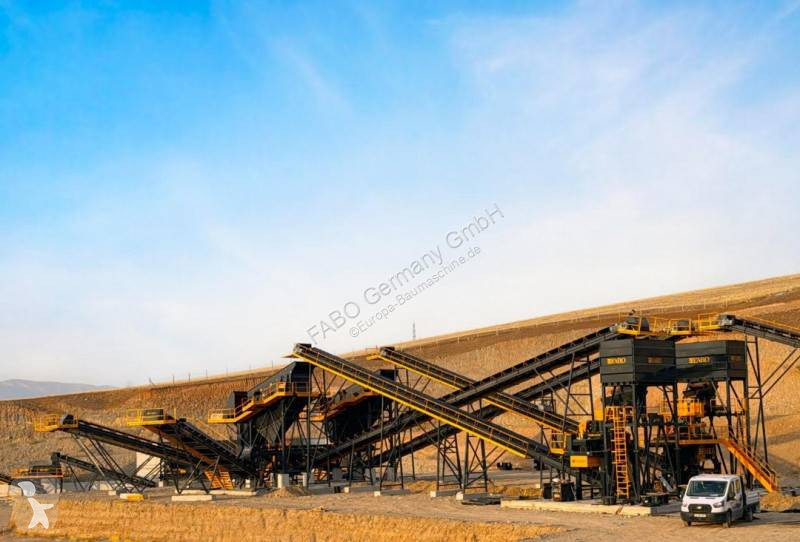

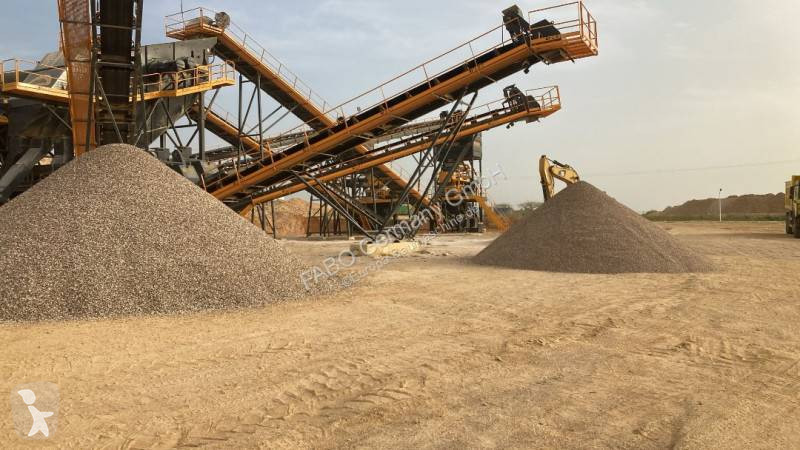

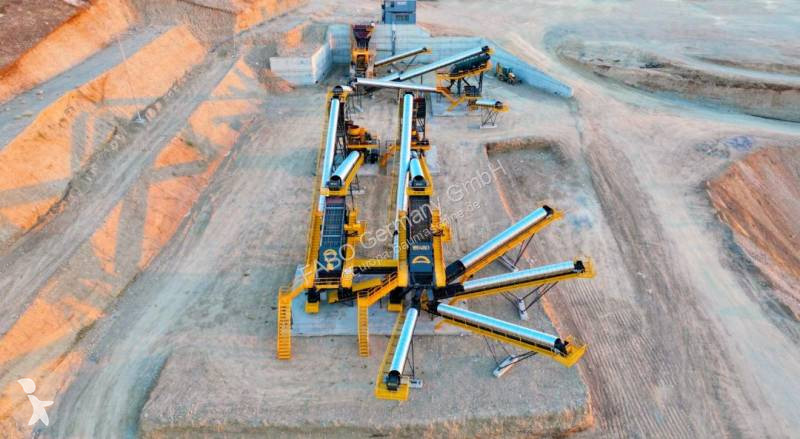

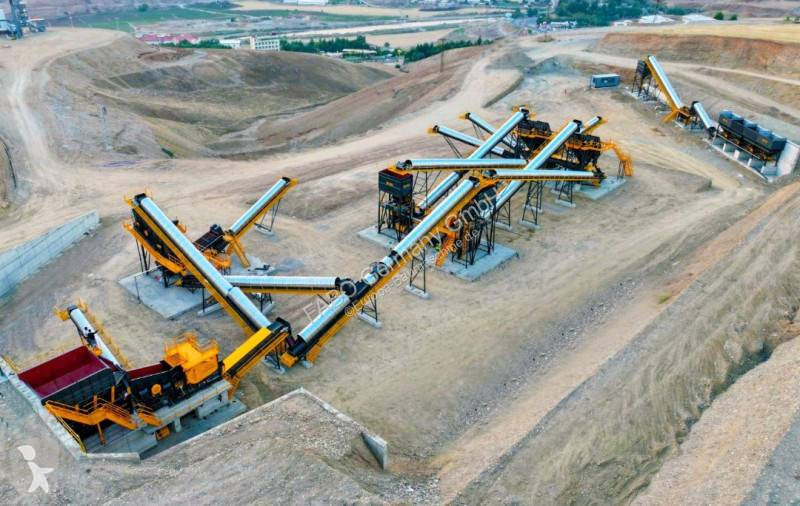

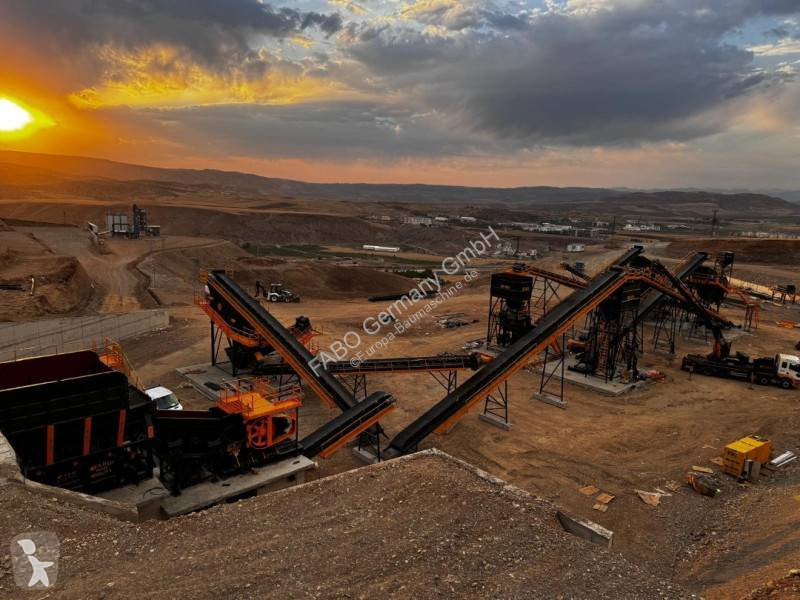

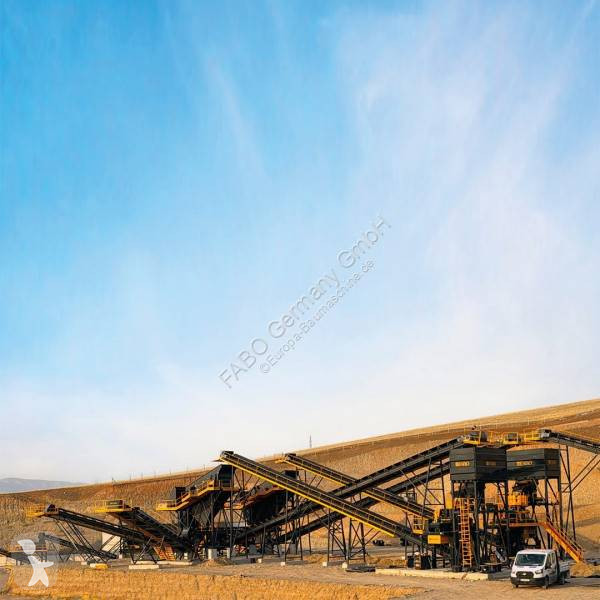

Our stationary crushing and screening plant, with a capacity of 200-350 tons per hour, consists of a 30 m³ vibrating feeding bunker, mid-screen, CLK-110 jaw crusher, cone crusher, vertical shaft impact crusher, stock and return conveyors, control cabin, and automation system. Products transferred to the feeding bunker are separated from dirt and mud using the intermediate screen and are bypassed with a bypass conveyor. The material above the screen goes to the jaw crusher, while the products on the second level drop onto the jaw discharge conveyor, and the products on the lowest level are discarded as bypass. The jaw crusher has a maximum feeding capacity of 800 mm and crushes the products, which first go to the washing screen. Here, the finest products are sent to the stock area with a screw washer, and the other products are sent to the cone crusher. The products coming out of the cone crusher are directed to the other screen and the vertical shaft impact crusher, allowing the desired products to be obtained from the final screen at high quality. TBX-30 Vibrating Feeding Bunker CLK-110 Jaw Crusher TE-2060x3 2000x6000 3-Deck Vibrating Washing Screen HY-800 8000x8000 Screw Washer 20m3 Cone Crusher Feeding Bunker CC-300 Cone Crusher 20m3 Vertical Shaft Impact Crusher Feeding Bunker VSI-900 Vertical Shaft Impact Crusher TE-2060x4 2000x6000 4-Deck Vibrating Screen TE-2060x3 2000x6000 3-Deck Vibrating Screen Conveyor Belts, Control Cabin, Electrical Panel, and Automation System
Zobraziť všetko

Poznámky

Our stationary crushing and screening plant, with a capacity of 200-350 tons per hour, consists of a 30 m³ vibrating feeding bunker, mid-screen, CLK-110 jaw crusher, cone crusher, vertical shaft impact crusher, stock and return conveyors, control cabin, and automation system. Products transferred to the feeding bunker are separated from dirt and mud using the intermediate screen and are bypassed with a bypass conveyor. The material above the screen goes to the jaw crusher, while the products on the second level drop onto the jaw discharge conveyor, and the products on the lowest level are discarded as bypass. The jaw crusher has a maximum feeding capacity of 800 mm and crushes the products, which first go to the washing screen. Here, the finest products are sent to the stock area with a screw washer, and the other products are sent to the cone crusher. The products coming out of the cone crusher are directed to the other screen and the vertical shaft impact crusher, allowing the desired products to be obtained from the final screen at high quality.

TBX-30 Vibrating Feeding Bunker
CLK-110 Jaw Crusher
TE-2060x3 2000x6000 3-Deck Vibrating Washing Screen
HY-800 8000x8000 Screw Washer
20m3 Cone Crusher Feeding Bunker
CC-300 Cone Crusher
20m3 Vertical Shaft Impact Crusher Feeding Bunker
VSI-900 Vertical Shaft Impact Crusher
TE-2060x4 2000x6000 4-Deck Vibrating Screen
TE-2060x3 2000x6000 3-Deck Vibrating Screen
Conveyor Belts, Control Cabin, Electrical Panel, and Automation System

Zobraziť všetko

Poznámky
Our stationary crushing and screening plant, with a capacity of 200-350 tons per hour, consists of a 30 m³ vibrating feeding bunker, mid-screen, CLK-110 jaw crusher, cone crusher, vertical shaft impact crusher, stock and return conveyors, control cabin, and automation system. Products transferred to the feeding bunker are separated from dirt and mud using the intermediate screen and are bypassed with a bypass conveyor. The material above the screen goes to the jaw crusher, while the products on the second level drop onto the jaw discharge conveyor, and the products on the lowest level are discarded as bypass. The jaw crusher has a maximum feeding capacity of 800 mm and crushes the products, which first go to the washing screen. Here, the finest products are sent to the stock area with a screw washer, and the other products are sent to the cone crusher. The products coming out of the cone crusher are directed to the other screen and the vertical shaft impact crusher, allowing the desired products to be obtained from the final screen at high quality. TBX-30 Vibrating Feeding Bunker CLK-110 Jaw Crusher TE-2060x3 2000x6000 3-Deck Vibrating Washing Screen HY-800 8000x8000 Screw Washer 20m3 Cone Crusher Feeding Bunker CC-300 Cone Crusher 20m3 Vertical Shaft Impact Crusher Feeding Bunker VSI-900 Vertical Shaft Impact Crusher TE-2060x4 2000x6000 4-Deck Vibrating Screen TE-2060x3 2000x6000 3-Deck Vibrating Screen Conveyor Belts, Control Cabin, Electrical Panel, and Automation System
