Čeľusťový drvič Fabo 500 t/h Stationäre Brech- und Siebanlage Elektrické nové

2026
0 Hodiny
52511 Geilenkirchen

Hlavné informácie
Ref. webu:	11277584
Typ	Drvič
Podtyp karosérie	Čeľusťový drvič
Značka	Fabo
Model	500 t/h Stationäre Brech- und Siebanlage
Stav	Nové
Rok	2026
Krajina	NEMECKO
Výrobca	Fabo

Stav stroja
Energia	Elektrické

Prevodovka
Upresnenie prevodovky	-

Doplňujúce informácie Fabo 500 t/h Stationäre...
Dodacia lehota (v dňoch)	90

Hlavná charakteristika
Kapacita	500 tony

Poznámky

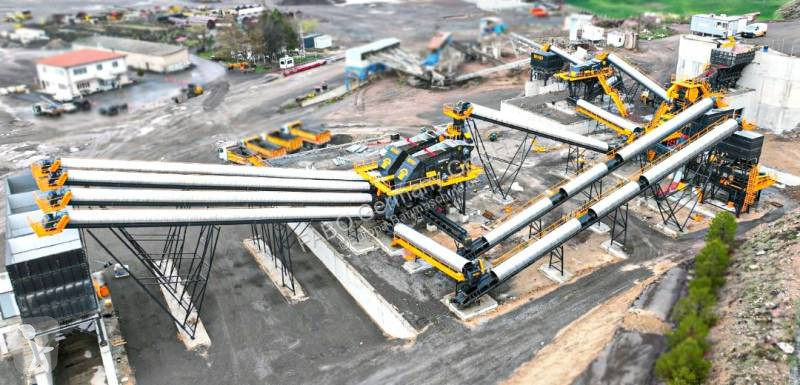

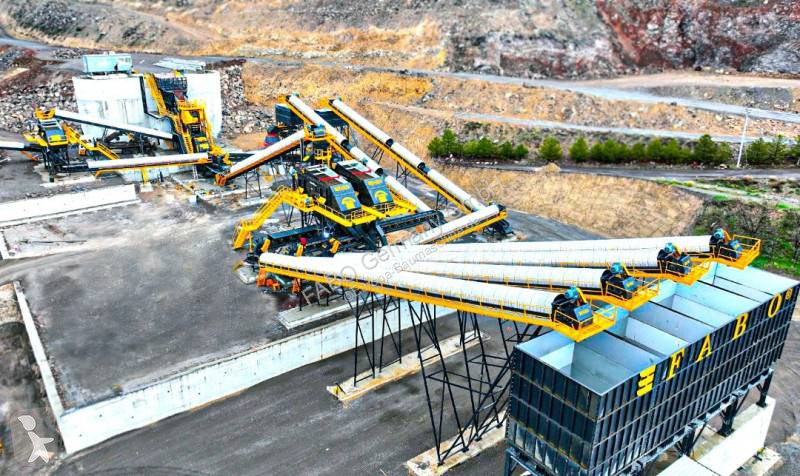

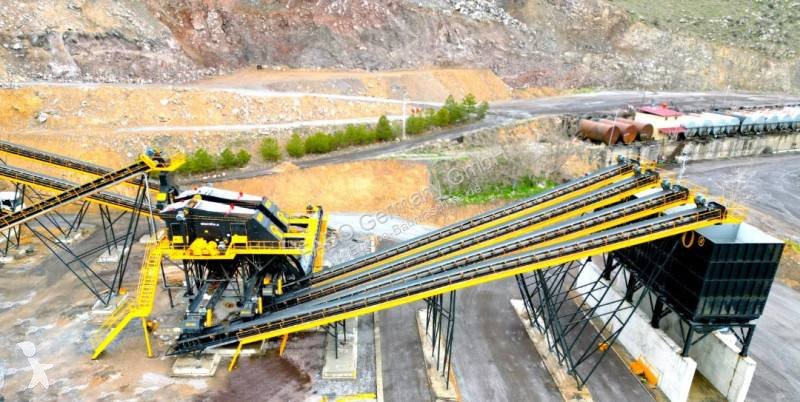

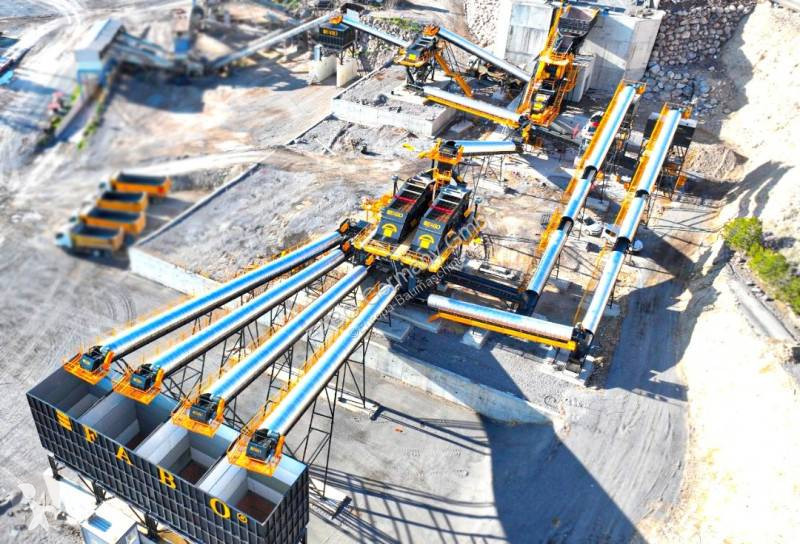

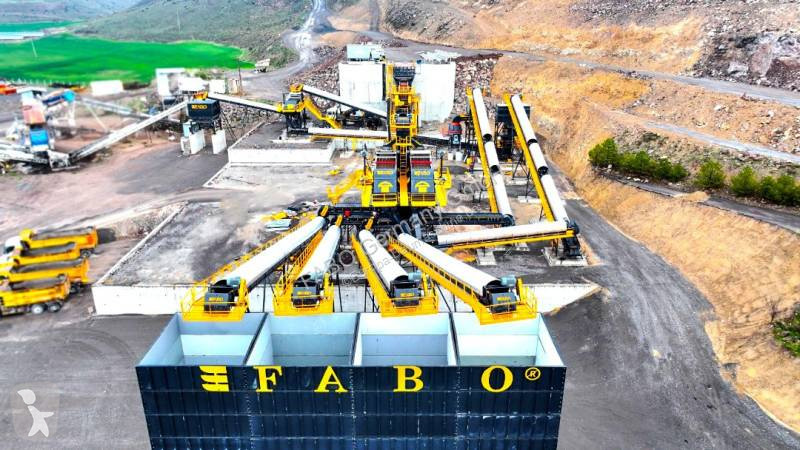

This stationary crushing and screening plant is designed to meet the needs of asphalt and concrete aggregates with high capacity and superior quality. With a production capacity of 500 tons per hour, the plant stands out in terms of both efficiency and product quality thanks to its modern engineering approach and optimized process flow. The feeder bunker and intermediate screen system in the plant's feeding unit ensure the controlled and balanced transfer of raw material to the crushing line. This ensures a continuous and stable production flow throughout the system, maximizing equipment performance. The CLK 130 jaw crusher, with its high strength and powerful crushing capability, plays a critical role in the initial stage of the process by effectively reducing large-sized material. Supported by an under-jaw vibro feeder, the system regulates the material flow, providing homogeneous feeding to the secondary impact crusher group. The positioning of all these units on a single platform and with a beltless flow principle saves space and offers ease of maintenance and operation. This innovative approach also contributes to reducing operating costs by increasing energy efficiency. The TK150 tertiary crusher and VSI 900 vertical shaft crushers, located in the advanced crushing stage of the plant, enable the production of cubic and high-quality aggregates, which are particularly needed in asphalt and concrete production. Thanks to this equipment, the particle shape and granulometry of the product are obtained in accordance with international standards, and the final product quality is significantly increased. The three horizontal screens in the system enable the precise classification of aggregates of different sizes, offering a variety of products to meet customer needs. Thanks to the screening efficiency, maximum product recovery is achieved with minimum waste, and the overall performance of the plant is optimized. This high-capacity crushing and screening plant, with its robust equipment structure, innovative design approach, and high-quality-oriented production philosophy, will make significant contributions to the region's infrastructure projects. Standing out as a sustainable, economical, and high-performance solution in both asphalt and concrete aggregate production, the plant fully meets the requirements of the modern mining and construction sectors. MAIN EQUIPMENT OF THE PLANT: 50 M3 FEEDING BUNKER PRE-SCREEN CLK-130 JAW CRUSHER 1300x1100 MM HDK-1115 IMPACT CRUSHER 1200X1500 MM VSI-900 VERTICAL SHAFT CRUSHER CLOSED ROTOR TK-150 TERTIARY CRUSHER 1200X1500 MM HORIZONTAL SCREENS STOCK BUNKERS CONVEYOR BELTS CONTROL CABINET AND AUTOMATION SYSTEM
Zobraziť všetko

Poznámky

This stationary crushing and screening plant is designed to meet the needs of asphalt and concrete aggregates with high capacity and superior quality. With a production capacity of 500 tons per hour, the plant stands out in terms of both efficiency and product quality thanks to its modern engineering approach and optimized process flow. The feeder bunker and intermediate screen system in the plant's feeding unit ensure the controlled and balanced transfer of raw material to the crushing line. This ensures a continuous and stable production flow throughout the system, maximizing equipment performance. The CLK 130 jaw crusher, with its high strength and powerful crushing capability, plays a critical role in the initial stage of the process by effectively reducing large-sized material. Supported by an under-jaw vibro feeder, the system regulates the material flow, providing homogeneous feeding to the secondary impact crusher group. The positioning of all these units on a single platform and with a beltless flow principle saves space and offers ease of maintenance and operation. This innovative approach also contributes to reducing operating costs by increasing energy efficiency.
The TK150 tertiary crusher and VSI 900 vertical shaft crushers, located in the advanced crushing stage of the plant, enable the production of cubic and high-quality aggregates, which are particularly needed in asphalt and concrete production. Thanks to this equipment, the particle shape and granulometry of the product are obtained in accordance with international standards, and the final product quality is significantly increased.
The three horizontal screens in the system enable the precise classification of aggregates of different sizes, offering a variety of products to meet customer needs. Thanks to the screening efficiency, maximum product recovery is achieved with minimum waste, and the overall performance of the plant is optimized.
This high-capacity crushing and screening plant, with its robust equipment structure, innovative design approach, and high-quality-oriented production philosophy, will make significant contributions to the region's infrastructure projects. Standing out as a sustainable, economical, and high-performance solution in both asphalt and concrete aggregate production, the plant fully meets the requirements of the modern mining and construction sectors.
MAIN EQUIPMENT OF THE PLANT:
50 M3 FEEDING BUNKER
PRE-SCREEN
CLK-130 JAW CRUSHER 1300x1100 MM
HDK-1115 IMPACT CRUSHER 1200X1500 MM
VSI-900 VERTICAL SHAFT CRUSHER CLOSED ROTOR
TK-150 TERTIARY CRUSHER 1200X1500 MM
HORIZONTAL SCREENS
STOCK BUNKERS
CONVEYOR BELTS
CONTROL CABINET AND AUTOMATION SYSTEM
